Exterior of the Communicator I
|
Number Keyboard Multi-Use Keyboard Floppy Drive |
Printer Screen Speaker |
|
Rear panel |
Right Number Keyboard
This Keyboard is used to enter numbers and to enter the various modes. Make sure that your number lock light is on.
Top

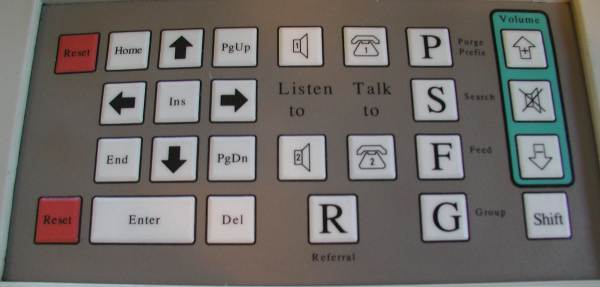

Left Multi-Use Keyboard
This Keyboard is used to navigate, adjust the speaker volume and enter several of the modes.
Top
Floppy Drive
Standard 3.5 inch floppy drive. Used to load files and to store overflow leads.
Top
Printer
Used to print out statistics, the phone numbers of the leads and just about every thing else.
Top
Screen
The screen displays menus and other information.
Top
Speaker
The Speaker lets you listen to the leads and to the calls as they are happening.
Top
Rear panel
This is were the real action happens. The rear panel has the power, phone line, mic and RS232 connections.
